FLIR Thermal Imaging Camera Comparison: Which Model Fits Your Workflow?

Best for: Electronics hobbyists needing simple spot diagnostics

Pros

• Rugged IP54 enclosure
• Patented MSX overlay
• Bullseye laser pointer
• Ten-year detector warranty

Cons

• Modest 4,800 pixel resolution

The Flir TG165-X Thermal Imaging Camera serves as an essential bridge between standard single-spot infrared thermometers and full-frame diagnostic imaging tools. Built with a 4,800-pixel infrared detector, this camera measures surface temperatures across an operational span of -25°C to 300°C (-13°F to 572°F). Rather than leaving the user with an ambiguous heat map, FLIR integrates its patented MSX technology, which embosses visual outlines from an internal camera directly onto the thermal image. The physical design centers around an LCD screen encased in a rugged IP54-rated housing designed to resist dirt, dust, and oil. An integrated bullseye laser pointer projects directly onto the target, physically outlining the measurement zone so technicians can pinpoint components accurately on crowded circuit boards or engine blocks.

For workflow ergonomics, the TG165-X provides simple wipe-clean plastic construction and ships with a wrist strap, carry pouch, USB Type-C cable, batteries, and instructions. The non-contact measurement mechanism operates alongside a rechargeable battery setup, allowing makers and mechanics to perform rapid troubleshooting sweeps without wearing down their personal mobile devices. FLIR backs the unit with a 2-10 warranty structure covering two years on parts and labor alongside ten years on the detector core itself. In a multi-camera studio or maker space where technicians monitor fixed gear using tools like a wyze battery cam, keeping a self-contained unit like the TG165-X on a pegboard provides quick diagnostic checks without requiring wireless pairing or smartphone configurations.

This camera fits users who need basic heat pattern visualization for electrical panels, mechanical bearings, and heating ducts without needing high-resolution radiometric image export or wireless reporting. Its 4,800-pixel native thermal sensor provides adequate clarity for general hotspot localization, though it gives way to higher-resolution alternatives like the TG268 when documenting fine micro-electronics or reading narrow heat gradients across surface-mount PCB components.

Best for: Industrial technicians monitoring high-temperature equipment

Pros

• Measures up to 400°C
• Super Resolution upscaling
• Fast six-second boot time
• Drop-tested IP54 build

Cons

• No built-in Wi-Fi sync

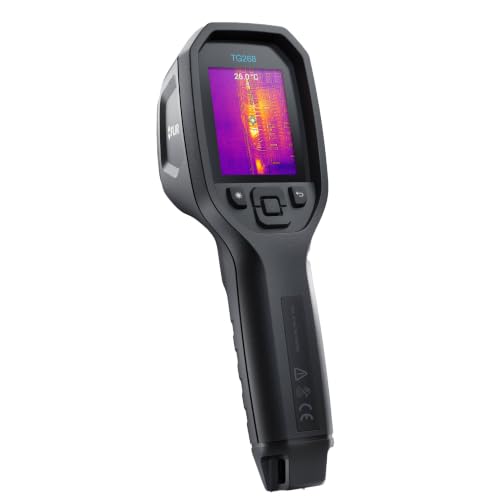

The Flir TG268 Thermal Imaging Camera builds upon spot-thermal utility by integrating Super Resolution image processing, expanding native 160×120 infrared data into a 320×240 thermal display. It incorporates a secondary visual camera operating at 640×480 resolution, feeding real-time edge details into FLIR’s MSX processing engine to deliver crisp physical outlines over high-heat areas. The device extends its thermal reading capacity up to 400°C, accommodating high-temperature exhaust runs, industrial heating elements, and heavy machinery diagnostics. Power comes from an included rechargeable lithium-ion battery, and the system achieves ready status quickly with an approximate six-second boot time.

Built for indoor and outdoor environments, the TG268 utilizes a ruggedized drop-tested exterior with an IP54 environmental rating that seals against dust, fluid splashes, and grease. The onboard bullseye laser defines the measurement perimeter directly on target surfaces, ensuring high-accuracy spot placement. Like its sibling models, it includes FLIR’s 2-10 warranty policy to protect the imaging detector over ten years. The digital display provides rapid visual feedback without necessitating external phone connections or app launches, making it a reliable standalone tool for immediate field inspection.

This unit is specifically suited for maintenance contractors and electronics repair specialists who require higher thermal resolution and expanded temperature limits than entry-level tools provide. However, because it is structured primarily as a spot-imaging inspection instrument without dedicated cloud upload capabilities, users needing immediate Wi-Fi documentation and client-ready reporting will find a more seamless workflow in the C3-X or E5 Pro.

Best for: Homeowners tackling basic air leak checks

Pros

• Super Resolution upscaling
• Ultra-light 1.28-ounce design
• Direct USB-C iPhone connection
• Jobsite tough drop rating

Cons

• Narrow 5°C to 120°C scene range

Best for: Mobile inspectors using USB-C iPhone setups

Pros

• Vivid IR 480×360 resolution
• Compact 1.29-ounce body
• Guided app inspections
• 5-meter drop rating

Cons

• Requires iPhone 15 or newer

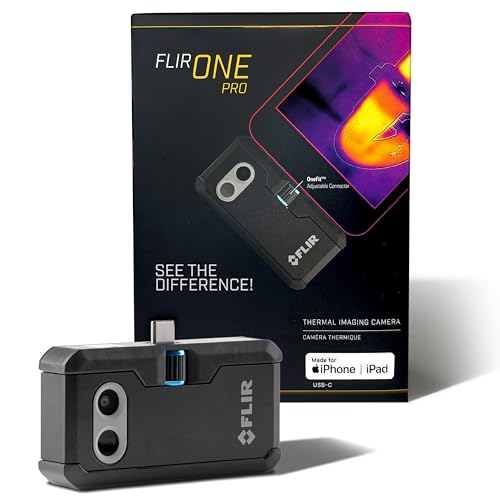

The Flir One Pro turns an iOS smartphone into a commercial-grade thermal inspection station by connecting directly to the device’s USB-C port. Designed specifically for iPhone 15 and newer generations, this ultra-compact module measures just 2.6 by 1.3 by 0.6 inches and weighs 1.29 ounces. Internally, the hardware pairs a 160×120 native infrared sensor with Vivid IR technology, upscaling the rendered output to 480×360 Super Resolution. Flir MSX technology blends the thermal data with visual camera input to delineate physical boundaries, text, and structural edges directly on the mobile display screen.

Operational control runs through the dedicated FLIR ONE application, which contains guided inspection routines to assist users in locating building air leaks, moisture retention, and automotive cooling bottlenecks. The module delivers measurement accuracy within ±3°C or ±5% when operating within an ambient temperature span of 15°C to 35°C on target scenes between 5°C to 120°C. Despite its miniature footprint, the hardware is built jobsite tough, featuring a drop rating of 1.5 meters. The listing notes that the camera is powered via an included battery setup, preventing it from instantly draining the connected smartphone during intensive teardowns.

This model is an ideal pick for content creators, home inspectors, and field technicians who prefer capturing high-resolution thermal photos and video directly onto their smartphone for rapid client emailing or video editing. It delivers noticeably higher image clarity than the standard mobile dongle, but users who require an all-weather standalone instrument with an IP54 enclosure will prefer dedicated handhelds like the TG268 or E5 Pro.

Best for: Building auditors needing pocket cloud reporting

Pros

• FLIR Ignite cloud upload
• Touchscreen with Picture-in-Picture
• Pocketable 6.72-ounce size
• True 12,288 thermal pixels

Cons

• 300°C upper temperature limit

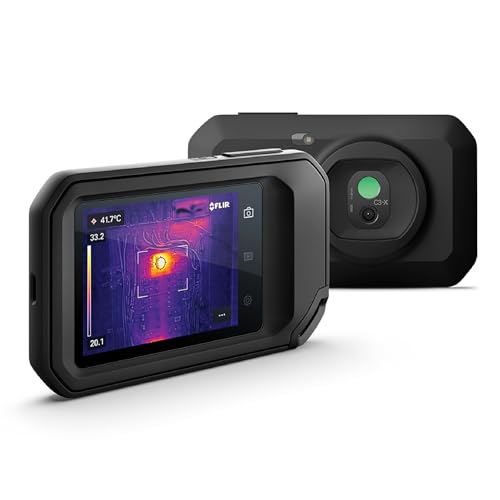

The Flir C3-X Compact Thermal Imaging Camera packages full radiometric imaging into a pocket-sized, smartphone-style chassis weighing only 6.72 ounces. Featuring a 128×96 true thermal sensor delivering 12,288 measurement pixels, the C3-X reads surface temperatures between -20°C and 300°C (-4°F to 572°F). The integrated touchscreen interface allows users to switch between four distinct shooting modes: Infrared, Visual, MSX, and Picture-in-Picture. Built-in Wi-Fi enables direct connectivity with the FLIR Ignite cloud platform, enabling automatic photo backup and rapid report generation without physical tethering.

The hardware features a fixed-focus electronic optical layout with USB 2.0 data connectivity for direct wired transfers in standard JPEG and PNG file formats. Its slim rectangular form slips easily into a work vest or tool pouch, while its wipe-clean black plastic casing stands up to daily utility. Backed by the standard FLIR 2-10 warranty, the C3-X ensures long-term reliability for building audits, HVAC inspections, and workbench electronic testing. Integrating cloud-enabled testing tools into diagnostic setups mirrors modern smart monitoring configurations, much like linking home security components through a blink system with sync module to keep records unified.

The C3-X represents the best flir thermal imaging camera balance for property evaluators and mobile repair technicians who want a pocketable, dedicated device with wireless cloud delivery. However, for industrial settings involving high-heat kilns or furnace inspection above 300°C, the extended temperature ceiling of the TG268 or E5 Pro becomes necessary.

Best for: Facility electricians running heavy daily sweeps

Pros

• Wide 400°C temperature ceiling
• Native 19,200 pixel detector
• Over-the-air cloud updates
• Ergonomic grip housing

Cons

• Heavier 1.27-pound chassis

The Flir E5 Pro Thermal Imaging Camera represents the traditional pistol-grip format built for demanding diagnostic environments and comprehensive electrical inspections. The imager features a true 160×120 thermal sensor providing 19,200 native measurement pixels combined with FLIR MSX visual edge embossing. With an expanded measurement span stretching from -20°C to 400°C (-4°F to 752°F), the E5 Pro easily diagnoses commercial three-phase distribution panels, industrial motors, and automotive exhaust systems. Built with a frame rate of 9Hz or less, the camera complies with U.S. Department of Commerce export controls.

Integrated Wi-Fi connects the E5 Pro directly to the FLIR Ignite cloud platform, enabling automatic image backup, web-based image organization, and over-the-air firmware updates to keep operating software current. The physical body measures 9.6 by 3.7 by 5.5 inches and weighs 1.27 pounds, utilizing heavy-duty plastic construction with an ergonomic handle and pull-trigger operation. Power is supplied by an included rechargeable lithium-ion battery pack, and the internal core is protected under FLIR’s 2-10 warranty program covering the thermal detector for a full decade.

This pistol-grip camera is tailored for full-time electrical contractors, plant maintenance teams, and commercial facility managers who perform repetitive point-and-pull diagnostic routines across large industrial complexes. While its native resolution and high heat ceiling provide robust diagnostic fidelity, users working on compact maker benches or prioritizing ultra-light travel gear may find its 1.27-pound frame bulkier than the pocket-sized C3-X.

The Flir One provides an accessible, mobile-first thermal diagnostic setup tailored for modern USB-C iOS hardware, specifically the iPhone 15 and newer. Operating on an 80×60 native infrared sensor, the device employs Vivid IR Super Resolution technology to upscale images to 240×180 pixels on the phone display. Like its Pro counterpart, it blends visual camera outlines with thermal maps via Flir MSX, creating discernible details across mechanical assemblies, drywall patches, and electrical outlets.

Weighing 1.28 ounces with dimensions of 2.6 by 1.3 by 0.6 inches, this pocket module clips directly into the smartphone data port without external cords. It delivers temperature evaluation accuracy of ±3°C or ±5% under standardized operating parameters (ambient 15°C to 35°C, scene 5°C to 120°C) and carries a 1.5-meter drop resistance rating. Inside the mobile application, step-by-step guided inspection routines assist DIY hobbyists and homeowners in identifying hidden draft leaks around window seals or tracing heating pipe paths under floorboards.

This compact imager is designed for makers, hobbyists, and homeowners seeking basic thermal visibility for routine inspections without carrying a secondary piece of screen hardware. While excellent for light-duty diagnostics, users requiring broader temperature ranges beyond 120°C or sharper native pixel density for commercial reporting should upgrade to the Flir One Pro or the standalone C3-X.
